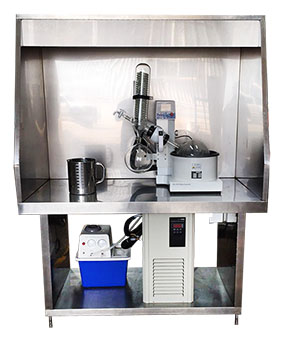

Rotary Evaporator

The Rotary Evaporator, also known as a rotavap, is a laboratory instrument used for the gentle removal of solvents from samples through evaporation. It is widely utilized in chemistry, biochemistry, and pharmaceuticals for concentrating solutions, purifying compounds, and efficiently recovering solvents.

What is a Rotary Evaporator?

A Rotary Evaporator is a laboratory device designed for the gentle removal of solvents from samples by evaporation. This equipment is extensively used in chemistry, biochemistry, and pharmaceutical industries for concentrating solutions, purifying substances, and recovering solvents efficiently.



Key Components of a Rotary Evaporator

  • Evaporating Flask: This is the container used to hold the solution that needs to be evaporated, typically spherical to increase the surface area for evaporation.
  • Distillation Head: This component directs the vapor produced during evaporation to the cooling system.
  • Condenser: This section converts the vapor back into liquid using cooling water or other cooling media.
  • Receiving Flask: This container is used to collect the liquid obtained from the distillation process.
  • Vacuum Pump: This device creates a vacuum within the system, lowering the boiling point of the solution, enabling evaporation to occur at lower temperatures.
  • Temperature Control System: This system regulates the temperature of the solution to ensure efficient distillation.



Applications of Rotary Evaporators

  • Chemical Industry: Used for producing high-purity chemicals.
  • Pharmaceutical Industry: Employed for isolating and purifying active pharmaceutical ingredients.
  • Research and Development: Used in the development of new drug formulations or chemical products.
  • Food Industry: Utilized for extracting essential oils or nutrients from plants.



Approximate Pricing of Rotary Evaporators

The price of Rotary Evaporators varies based on size, brand, and functionality. Generally, prices start around 50,000 to 150,000 THB for smaller models suitable for laboratories, while more complex units with automatic functions can cost up to 500,000 THB or more.



Advantages and Disadvantages of Rotary Evaporators

Advantages:

  • Enables evaporation at lower temperatures, reducing the risk of degradation of sensitive substances.
  • User-friendly and convenient.
  • Increases the efficiency of solvent separation.

Disadvantages:

  • Initial investment can be relatively high.
  • Requires proper maintenance to avoid potential issues.
  • Limited use with certain substances that may be sensitive to temperature.



How to Choose a Rotary Evaporator

  • Size and Capacity: Select an appropriate size based on the volume of solution to be evaporated.
  • Material: Choose materials that are resistant to chemicals and durable.
  • Control Functions: Opt for a device with precise temperature and vacuum control systems.
  • Maintenance: Look for models that are easy to maintain.



Historical Background of Rotary Evaporators

The history of the Rotary Evaporator dates back to the mid-20th century when distillation technology began to be developed for laboratory use. At that time, distillation tools were relatively simple and lacked precise temperature control. In the 1950s, innovations were introduced, enhancing the efficiency of Rotary Evaporators by improving vacuum systems and temperature controls, enabling the distillation of substances at lower temperatures and reducing the loss of essential compounds.

Moreover, between the 1980s and 1990s, research and development in rotary evaporation led to increased automation capabilities, making operation more convenient. Today, the Rotary Evaporator is an indispensable tool in chemical, biochemical, and pharmaceutical laboratories, continually evolving to meet the demands of the ever-changing fields of science and technology.

Key Features and Main Components of Rotary Evaporators

  1. Rotating Flask
    The sample intended for evaporation is placed in a specially designed container known as a rotating flask, which is shaped like a half-circle or round-bottom flask. This flask is connected to the rotary evaporator and rotates along a horizontal or inclined axis under vacuum conditions to increase the surface area available for evaporation.
  2. Water Bath or Heating Bath
    Rotary evaporators typically include a water bath or heating bath that provides controlled heat to the boiling flask. This allows for precise temperature control of the sample during evaporation, facilitating gentle evaporation of the solvent without damaging the sample.
  3. Rotating Evaporating Flask
    The flask containing the sample solution continuously rotates throughout the evaporation process. This rotation helps efficiently mix the sample and creates even heat distribution, enhancing the evaporation efficiency.
  4. Condenser
    The vapor of the evaporated solvent is directed to a condenser that is connected to the system. There, the vapor is cooled and returns to a liquid state. The cooling system may come in various forms, including single-coil condensers or double-coil condensers.
  5. Vacuum System
    A vacuum pump is used to maintain reduced pressure in the boiling flask and condenser, lowering the boiling point of the solvent and increasing the efficiency of solvent evaporation. The vacuum system is crucial for effectively removing the solvent and preventing sample degradation.
  6. Vacuum Control Valve
    The vacuum control valve enables the operator to adjust the reduced pressure within the system, controlling the evaporation rate of the solvent and preventing sample damage.
  7. Collection Flask
    The condensed solvent collects in a separate flask known as the collection flask. This flask is positioned below the condenser and gathers the removed solvent for further use or disposal.
  8. Safety Features
    Rotary evaporators may incorporate safety features such as sample protection, automatic shut-off, and pressure release valves to ensure safe operation and prevent accidents.
  9. Digital Control Interface
    Modern rotary evaporators often feature a digital control interface, allowing operators to set and monitor parameters such as temperature, rotation speed, and vacuum level with precision. This provides accurate control during the evaporation process.

Rotary evaporators are versatile and efficient tools for solvent removal and concentration adjustment, making them essential instruments in various research institutions for operations requiring sample purification, solvent recovery, and effective extraction processes.
